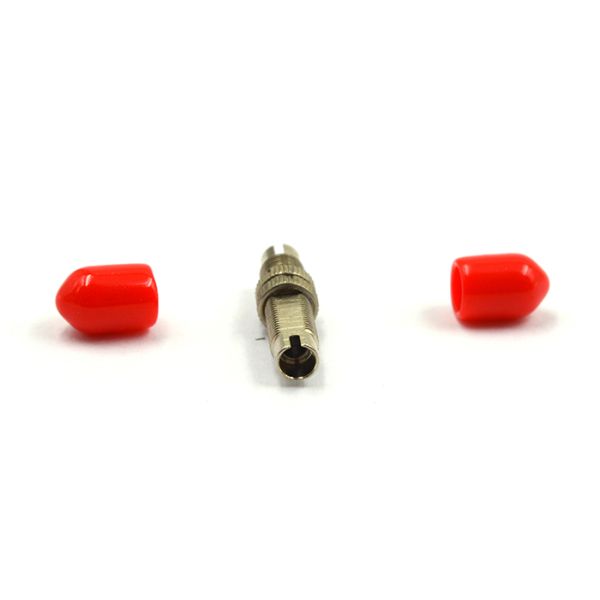

DIN Fiber Optical Adapter Ceramic Sleeve Steel Housing Plastic Dust Cap

Name: DIN Fiber Optical Adapter Ceramic Sleeve Steel Housing Plastic Dust Cap
Brand: Haiyu Optical
Price: 1 USD

Quality DIN Fiber Optical Adapter Ceramic Sleeve Steel Housing Plastic Dust Cap for sale

Brand Name : Haiyu Optical

Model Number : HYG-ADP-DIN-001

Certification : ISO9001,RoHS,CE

Place of Origin : China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram, L/C

Supply Ability : 5000pcs per day

Delivery Time : 2-3 working days

Packaging Details : Packed in Blister box and carton

Product name : fiber optic adapter

Insertion loss : ≤0.2dB

Connector type : DIN

Sleeve material : Zirconia

Durability : 1000 time matings

Operating temperature : -40 to +85 degree

Application : FTTH FTTB FTTX Network,Telecommunication/Fiber Optic CATV/Multimedia

Contact Now

Optical Simplex SC Fiber Adapter Singlemode Multimode Colorfull Avalilable

Fiber optic adapter is also called fiber optic coupler. It is used to provide a cable to cable fiber connection. People sometimes also name them to be mating sleeves and hybrid adaptors. Mating sleeves means this fiber optic adapter is used to connect the same type fiber optic connectors, while hybrid adaptors are the fiber optic cable adaptor types used to connect different kinds of fiber optic connectors. We provide a complete line of adapters for fiber optic connection, like ST, SC, FC, LC, MTRJ, MPO, MU, SMA, E2000, DIN style fiber optic adapters for both multimode and single-mode fiber applications.

Parameters:

Parameter	Unit	DIN
		SM			MM
		PC	UPC	APC	PC
Insertion loss	dB	≤0.2	≤0.1	≤0.2	≤0.2
Return Loss	dB	≥45	≥50	≥60	≥30
Interchangeability	dB	≤0.2
Repeatability	dB	≤0.2
Mechanical endurance	Time	>1000
Operating temperature	°C	-40~75
Storage temperature	°C	-45~85

Features:

Precision ceramic ferrule
Plastic or metal housing material
Compact design
Telcordia, TIA/IEA, IEC and JIS compliance
High precision alignment
Low insertion and return loss and back reflection
Choice of metal or plastic housing, mount style & flange options

Product application:

CATV
Telecommunication networks
Local Area Networks (LANs)
Metro networks
Data processing networks
Industrial, military and medical
